Width: 1.3m
Length: 2.0m
Height: 1.8m
$2049
(Inclusive GST)
Hire for $140 /week
See Package Inclusions
2 x Four rung frame, 1600*1300mm
2x Guard rail, 1000*1300mm
6 x 2000mm Horizontal Brace
2 x 2000mm Diagonal Brace
2x 2000mm Platform (Timber)
4x Castor Wheel 8
Select Add-ons

Scaffold Upgrades

Scaffold Expert Hire

Click on the Overview tab for more information


Addon Subtotal: $0
Clear

Shift Finance - Pay Your Way

Looking to Finance your Purchase? Learn More about your Finance Options >>

SKU: 132018

Pickup Options

Delivery Charges:

Price Match
Enquire Now

Medium-Duty 450kg S.W.L.1.3m Width. We are Australia’s leading manufacturer and distributor of scaffolding and access equipment.

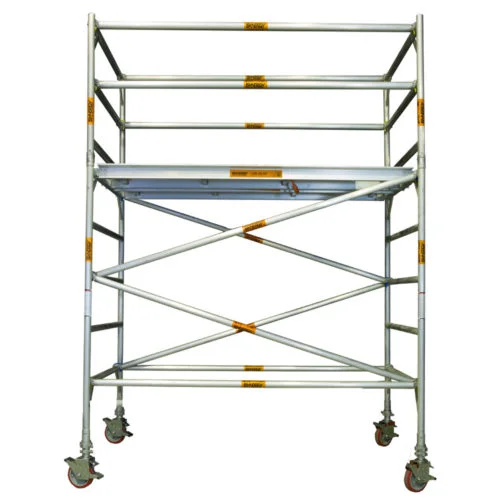

Synergy aluminium mobile wide scaffold contains lightweight components which allows easy assembly and transport. Complete with Work Cover NSW certification means this scaffold can be used in domestic and commercial fields. More suited for residential, commercial and industrial sites.

For bulk orders and pricing please contact us

Please note, Safework NSW rule states for every working platform you need to have a ladder that is 1 metre higher than the platform. If you do not have one, you can add one to your order by selecting it in the Upgrades list.

Scaffold Expert Hire Add-On: Have someone come to your premises and show you how to erect your scaffold properly. Cheaper than Labour-Hire and you learn how to put the scaffold together for future jobs!
Please note: This is a guide only on how to build the scaffold and will still need a minimum of 2 people to put it together. The Expert is only there to show you the steps and give support, not to build the scaffold on their own.

INCLUSIONS

Code Description Qty
WF4 Four rung frame, 1600*1300mm 2
WG1 Guard rail, 1000*1300mm 2
NHB 2000mm Horizontal Brace 6
NDB-400 2000mm Diagonal Brace 2
NPHO 2000mm Platform (Timber) 2
CWA8 Castor Wheel 8 4



WF5-400 Aluminium Wide Frames, 1.3 x 2.0m

The 2.0M five rung wide frames are used in conjunction with the wide scaffolds.

WF3-400 Aluminium Wide Frames, 1.3 x 1.2m

Synergy’s 3 rung ladder frame is manufactured from durable and weather-resistant aluminium tubing with a tube wall thickness of 2mm.
It has an overall height of 1195mm, width of 1300mm (outside to outside) with the rung interval spacing at 400mm apart.
The top end of the frame has a spigot which allows for frames to be inserted into the spigot ensuring a quick connect.

platform NPHO Platform with Hatch, 2.0m(1883mm Long Deck)

Our platform suitable for the 2.0m long mobile scaffold is manufactured from marine grade plywood and is 1883mm long from centre to centre. It features an easy-lift hatch which allows for access between levels while ensuring the worker is safe.

CWA8 8inch Adjustable Castor Wheels

The 8-inch mobile scaffold polyurethane wheel is 150mm and have an SWL of 225kgs. Fitted with a foot brake to prevent rolling and swivelling movement and a turning mechanism to provide an adjustment of 400mm, they are suitable for both internal and external use.

brace NHB Horizontal Brace, 2.0m

Our horizontal brace suitable for the 2.0m long scaffold is precisely 1884mm long. The brace is manufactured from certified structural grade aluminium tubing. The ends of the brace are riveted.

brace NDB-400 Diagonal Brace, *m

Our horizontal brace suitable for the 2.0m long scaffold is precisely 2000mm long. The brace is manufactured from certified structural grade aluminium tubing. The ends of the brace are riveted.



Length: 2.0m

Width: 1.3m

Platform Height: 1.8m Extends to 2.2m

Tube Material: Aluminium 6061-T6

Tube Diameter: 51.5mm

Tube Wall Thickness: 2mm

Pop Riveted

Safe Work Load (SWL):  450kg

Wheel Size: 8 Inch (200mm)

Platform Material: Aluminium & Laminated Plywood

Work Cover Plank Registration Number: PFS 6-154120/11

1 Year Manufacturer Warranty

10 Years Welding Warranty





Wide Scaffold Assembly Manual







Wide Scaffold WorkCover Certificate



Your order will be delivered on a pallet with the following dimensions:

Pallet dimensions:

Width: 130CM
Length: 210CM
Height: 50CM

TOTAL WEIGHT: 150kg (Not Including Pallet Weight)

*Disclaimer* The total weight stated will vary based on add-ons. Images used below are generic and used to give you a rough idea of how your order will look packed. The images don’t represent the product you are purchasing.
