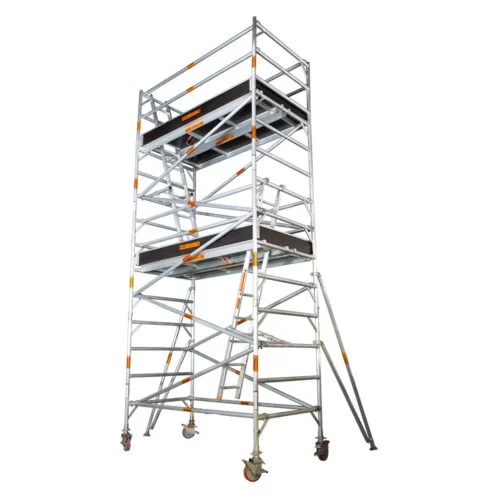

Synergy aluminium mobile wide scaffold contains lightweight components which allows easy assembly and transport. Complete with Work Cover NSW certification means this scaffold can be used in domestic and commercial fields. More suited for residential, commercial and industrial sites.
For bulk orders and pricing please contact us
Workcover certifies double width mobile scaffolds without support to a maximum height of 5m. Mobile scaffolds over 5m require outriggers by law which must be positioned to maintain a height to minimum base width ratio of 3:1 the height of towers with a base width less than 1.2m should not exceed twice least base dimensions.
A licensed scaffolder is required for the erection, alteration or dismantling of a tower or mobile scaffold where there is a risk that a person or object could fall more than 4 metres from the platform or the structure. (AS/NZS 4576:1995, 10.3.8 Tower-frame scaffolds)
Scaffold Expert Hire Add-On: Have someone come to your premises and show you how to erect your scaffold properly. Cheaper than Labour-Hire and you learn how to put the scaffold together for future jobs!
Please note: This is a guide only on how to build the scaffold and will still need a minimum of 2 people to put it together. The Expert is only there to show you the steps and give support, not to build the scaffold on their own.
INCLUSIONS
table {
border-collapse: collapse;
width: 100%;
}
td, th {
border: 1px solid #dddddd;
text-align: left;
}
| Quantity | Description | Individual Weight(kg) | Total Weight(kg) |
| 2 | 1.00m Guard Rails | 4.65 | 9.30 |
| 4 | 2.00m Ladder Frame | 9.10 | 36.40 |
| 4 | 8inch Wheels (Can be adjusted by 400mm) | 5.55 | 22.20 |
| 10 | 2.00m Horizontal Braces | 2.03 | 20.30 |
| 8 | 2.00m Diagonal Braces | 5.20 | 41.60 |
| 4 | 2.00m Platforms | 16.10 | 64.40 |
| 2 | 3.00m Straight Ladder | 9.70 | 19.40 |
| 4 | 1.30m Kickboards | 2.40 | 9.60 |
| 4 | 2.00m Kickboards | 4.00 | 16.00 |
| 2 | (2.30m – 3.00m) Stabilisers | 7.05 | 14.10 |
TOTAL WEIGHT: 252.90kg
 |
WF5-400 Aluminium Wide Frames, 1.3 x 2.5m
The 2.0M five rung wide frames are used in conjunction with the wide scaffolds. |
 |
WG1 Guard rail, 1000*1300mm
Synergy’s guard rail frame is made from durable and weather-resistant aluminium tubing with a tube wall thickness of 2mm. It has an overall height of 1000mm, width of 1300mm (outside to outside) with the rung interval spacing at 400mm apart. The top end of the frame has a closed-end cap. |
 |
S3 Stabilisers, *- 2300-3000mm
Our stabilizers have two arms which attach onto the scaffold using a swivel coupler to prevent it from rocking. The leg of the stabilizer allows the user to adjust the range depending on what is required. It can be used in any situation. It also includes a swivel foot with rubber sole for extra stability. |
 |
CWA8 8inch Adjustable Castor Wheels
The 8-inch mobile scaffold polyurethane wheel is 150mm and have an SWL of 225kgs. Fitted with a foot brake to prevent rolling and swivelling movement and a turning mechanism to provide an adjustment of 400mm, they are suitable for both internal and external use. |
 |
Aluminium Mobile Scaffold Ladders
Sizes: 1.7m, 3.0m, 4.0m 6.0m Our ladders are designed to enable easy transport. They feature a brace to secure the ladder at any angle and hooks to rest on the scaffold ladder frame rungs. |
 |
NPHO Platform with Hatch, 2.0m(1883mm Long Deck)
Our platform suitable for the 2.0m long mobile scaffold is manufactured from marine grade plywood and is 1883mm long from centre to centre. It features an easy-lift hatch which allows for access between levels while ensuring the worker is safe. |
 |
NHB Horizontal Brace, 2.0m
Our horizontal brace suitable for the 2.0m long scaffold is precisely 1884mm long. The brace is manufactured from certified structural grade aluminium tubing. The ends of the brace are riveted. |
 |
NDB-400 Diagonal Brace, *m
Our horizontal brace suitable for the 2.0m long scaffold is precisely 2000mm long. The brace is manufactured from certified structural grade aluminium tubing. The ends of the brace are riveted. |
 |
Timber Kickboards
Synergy’s Toeboards are made of plywood material and are designed for an easy and secure fit. |
Length: 2.5m
Width: 1.3m
Platform Height: 4.2m Extends to 4.6m
Total Scaffold Height: 5.2m Extends to 5.6m
Tube Material: Aluminium 6061-T6
Tube Diameter: 51.5mm
Tube Wall Thickness: 2mm
Pop Riveted
Safe Work Load (SWL): 450kg
Wheel Size: 8 Inch (200mm)
Platform Material: Aluminium & Laminated Plywood
Work Cover Plank Registration Number: PFS 6-154120/11
1 Year Manufacturer Warranty
10 Years Welding Warranty
Wide Scaffold Assembly Manual
|
Wide Scaffold WorkCover Certificate
 |
| Your order will be delivered on a pallet with the following dimensions:
Pallet dimensions: Width: 130CM TOTAL WEIGHT: 190kg (Not Including Pallet Weight) |
*Disclaimer* The total weight stated will vary based on add-ons. Images used below are generic and used to give you a rough idea of how your order will look packed. The images don’t represent the product you are purchasing. | |
|
|
|
