Width: 0.74m
Length: 2.5m
Height: 4.2m
$2599
(Inclusive GST)
Hire for $275 /week
See Package Inclusions
2 x 1.0m Guard Rails
4 x 2.0m Ladder Frames
4 x 6Inch Wheels
10 x Horizontal Braces
8 x Diagonal Braces
2 x 2.5m Platform
2 x 3.0m Straight Ladder
4 x 0.74m Kickboards
4 x 2.5m Kickboards
2 x Stabilisers
Select Add-ons

Scaffold Upgrades


Addon Subtotal: $0
Clear

SKU: 072542DSLT

Pickup Options

Delivery Charges:

Price Match

Light-Duty 225kg S.W.L. 0.74m Width. We are Australia’s leading manufacturer and distributor of scaffolding and access equipment.

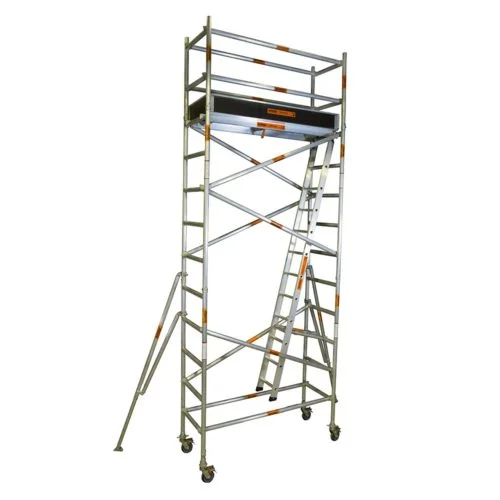

Synergy aluminium mobile narrow scaffold contains lightweight components which allows easy assembly and transport. Complete with Work Cover NSW certification means this scaffold can be used in domestic and commercial fields. More suited for residential, commercial and industrial sites.

For bulk orders and pricing please contact us

UPGRADE TO ALUMINIUM PLATFORMS FOR ONLY $100
Our aluminium platforms are relatively light in weight but still holds a high level of strength, reliability & durability. They are quite easy to manoeuvre around a jobsite or for personal use. Our aluminium platforms will provide you with the most solid & stable working environment.

Workcover certifies double width mobile scaffolds without support to a maximum height of 5m. Mobile scaffolds over 5m require outriggers by law which must be positioned to maintain a height to minimum base width ratio of 3:1 the height of towers with a base width less than 1.2m should not exceed twice least base dimensions.
A licensed scaffolder is required for the erection, alteration or dismantling of a tower or mobile scaffold where there is a risk that a person or object could fall more than 4 metres from the platform or the structure. (AS/NZS 4576:1995, 10.3.8 Tower-frame scaffolds)

INCLUSIONS

Quantity Description Individual Weight(kg) Total Weight(kg)
2 1.00m Guard Rails 3.27 6.54
4 2.00m Ladder Frame 6.29 25.16
4 6inch Wheels (Can be adjusted by 400mm) 3.40 13.60
10 2.50m Horizontal Braces 2.65 26.50
8 2.50m Diagonal Braces 2.75 22.00
2 2.50m Platforms 18.35 36.70
2 3.00m Ladder 9.70 19.40
4 0.74m Kickboards 1.40 5.60
4 2.50m Kickboards 5.20 20.80
2 (2.30m – 3.00m) Stabilisers 7.05 14.10

TOTAL WEIGHT: 190.40kg

NARROW COMPONENTS

NF5-400 0.74 x 2.0m aluminium narrow frames

Synergy’s 5 rung ladder frame is made from durable and weather resistant aluminium tubing with a tube wall thickness of 2mm.

It has an overall height of 1995mm, width of 740mm (outside to outside) with the rung interval spacing at 400mm apart.

The top end of the frame has a spigot which allows for frames to be inserted into the spigot ensuring a quick connect.

CWA6-45 6inch adjustable castor wheels

The 6 inch mobile scaffold polyurethane wheel is 150mm and have a SWL of 225kgs. Fitted with a a foot brake to prevent rolling and swivelling movement and a turning mechanism to provide an adjustment of 400mm, they are suitable for both internal and external use.

WDB Diagonal brace, 2620mm, blue grasper

Colour-coded blue, our 2.5m diagonal braces are manufactured from certified structural grade aluminium tubing.

All joints are fully welded to form a very solid joint.

WHB Horizontal brace, 2495mm, gold grasper

Colour-coded gold, our 2.5m horizontal braces are manufactured from certified structural grade aluminium tubing.

All joints are fully welded to form a very solid joint.

Baces have safe and simple snap on clamps completely exposed for easy cleaning and maintenance with a wire brush.

KA-2.5X0.6PH 2500*600mm Platform with Hatch

Our platform is 2500mm from centre to centre with the deck made from marine ply and aluminium frame. It features two easy-lift hatches. The first and larger allows for access between levels while ensuring the worker is safe while the second is a ladder hatch.

FG1 Guard rail, 1000*740mm

Synergy’s guard rail frame is made from durable and weather resistant aluminium tubing with a tube wall thickness of 2mm.

It has an overall height of 1000mm, width of 740mm (outside to outside) with the rung interval spacing at 400mm apart.

The top end of the frame has a closed end cap.

TB25 2.5m timber kickboards

Synergy’s Toeboards are made of plywood material and are designed for an easy and secure fit.

TB07 0.74m timber kickboards

Synergy’s Toeboards are made of plywood material and are designed for an easy and secure fit.

S3 *-2300mm-3000mm stabilisers

Our stabilizers have two arms which attach onto the scaffold using a swivel coupler to prevent it from rocking. The leg of the stabilizer allows the user to adjust the range depending on what is required. It can be used in any situation. It also includes a swivel foot with rubber sole for extra stability.

AL_03 3.0m aluminium scaffold ladder

Our 3000mm Aluminium Ladder features a brace to secure the ladder at any angle and hooks to rest on the scaffold ladder frame rungs.

EXL 3.0 – 6.0m aluminium extension ladder

Closed size: 3m

Fully open size: 6.0m

Our extension ladder is designed to enable easy transport. It features a brace to secure the ladder at any angle and hooks to rest on the scaffold ladder frame rungs. It is suitable for use with any system.

Frame NF5-400 Aluminium Narrow Frames, 0.74 x 2.0m

The 6-inch mobile scaffold polyurethane wheel is 150mm and have an SWL of 225kgs. Fitted with a a foot brake to prevent rolling and swivelling movement and a turning mechanism to provide an adjustment of 400mm, they are suitable for both internal and external use.

Frame NF3-400 Aluminium Narrow Frames, 0.74 x 1.2m

Synergy’s 3 rung ladder frame is manufactured from durable and weather-resistant aluminium tubing with a tube wall thickness of 2mm.
It has an overall height of 1195mm, width of 740mm (outside to outside) with the rung interval spacing at 400mm apart.
The top end of the frame has a spigot which allows for frames to be inserted into the spigot ensuring a quick connect.

frame FG1 Guard rail, 1000*740mm

Synergy’s guard rail frame is made from durable and weather-resistant aluminium tubing with a tube wall thickness of 2mm.

It has an overall height of 1000mm, width of 740mm (outside to outside) with the rung interval spacing at 400mm apart.

The top end of the frame has a closed-end cap.

CWA6-45 6inch Adjustable Castor Wheels

The 6-inch mobile scaffold polyurethane wheel is 150mm and have an SWL of 225kgs. Fitted with a foot brake to prevent rolling and swivelling movement and a turning mechanism to provide an adjustment of 400mm, they are suitable for both internal and external use.

ladder EXL Aluminium Extension Ladder, 3.0 – 6.0m

Closed size: 3m
Fully open size: 6.0m
Our extension ladder is designed to enable easy transport. It features a brace to secure the ladder at any angle and hooks to rest on the scaffold ladder frame rungs. It is suitable for use with any system.

platform NPHO Platform with Hatch, 2.0m(1883mm Long Deck)

Our platform suitable for the 2.0m long mobile scaffold is manufactured from marine grade plywood and is 1883mm long from centre to centre. It features an easy-lift hatch which allows for access between levels while ensuring the worker is safe.

Aluminium Mobile Scaffold Ladders

Sizes: 1.7m, 3.0m, 4.0m 6.0m

Our ladders are designed to enable easy transport. They feature a brace to secure the ladder at any angle and hooks to rest on the scaffold ladder frame rungs.

KA-2.5×06 Platform

Our platform suitable for the 2.5m long mobile scaffold is manufactured from marine grade plywood. It features an easy-lift hatch which allows for access between levels while ensuring the worker is safe.

brace NHB Horizontal Brace, 2.0m

Our horizontal brace suitable for the 2.0m long scaffold is precisely 1884mm long. The brace is manufactured from certified structural grade aluminium tubing. The ends of the brace are riveted.

brace NDB-400 Diagonal Brace, *m

Our horizontal brace suitable for the 2.0m long scaffold is precisely 2000mm long. The brace is manufactured from certified structural grade aluminium tubing. The ends of the brace are riveted.

WHB Horizontal Brace, 2.5m

Our horizontal brace suitable for the 2.5m long scaffold is precisely 2620mm long. The brace is manufactured from certified structural grade aluminium tubing. The ends of the brace are welded.

WDB-400 Diagonal Brace, *m

Our horizontal brace suitable for the 2.5m long scaffold is precisely 2620mm long. The brace is manufactured from certified structural grade aluminium tubing. The ends of the brace are welded.

Timber Kickboards

Synergy’s Toeboards are made of plywood material and are designed for an easy and secure fit.

S3 Stabilisers, *-2300mm-3000mm

Our stabilizers have two arms which attach onto the scaffold using a swivel coupler to prevent it from rocking. The leg of the stabilizer allows the user to adjust the range depending on what is required. It can be used in any situation. It also includes a swivel foot with rubber sole for extra stability.

S5 Stabilisers, *- 3000mm-5000mm

Our stabilizers have two arms which attach onto the scaffold using a swivel coupler to prevent it from rocking. The leg of the stabilizer allows the user to adjust the range depending on what is required. It can be used in any situation. It also includes a swivel foot with rubber sole for extra stability.



Length: 2.5m

Width: 0.74m

Platform Height: 4.2m Extends to 4.6m

Total Scaffold Height: 5.2m Extends to 5.6m

Tube Material: Aluminium 6061-T6

Tube Diameter: 51.5mm

Tube Wall Thickness: 2mm

Tig Welding

Safe Work Load (SWL):  225kg

Wheel Size: 6 Inch (150mm)

Platform Material: Aluminium & Laminated Plywood

Work Cover Plank Registration Number: PFS 6-189961/15

1 Year Manufacturer Warranty

10 Years Welding Warranty

Platform

Toeboards

Stabiliser

Frame

Caster Wheels

Diagonal Brace

Horizontal Brace

Safety Pin

Ladder

Spanner

Your order will be delivered on a pallet with the following dimensions:

Pallet dimensions:

Width: 120CM
Length: 210CM
Height: 70CM

TOTAL WEIGHT: 202.94kg

Please view the images below to give you a rough idea of how your order gets packed and delivered.
