Width: 1.3m
Length: 2.0m
Height: 6.2m
$5799
(Inclusive GST)
Hire for $410 /week
See Package Inclusions
2 x 1.0m Guard Rails
6 x 2.0m Ladder Frames
4 x 8Inch Wheels
10 x Horizontal Braces
12 x Diagonal Braces
4 x 2.0m Platform
2 x 4.0m Straight Ladder
4 x 1.3m Kickboards
4 x 2.0m Kickboards
2 x Stabilisers
Select Add-ons

Aluminium Platform Upgrade

Upgrade to the Aluminium Platform

Scaffold Expert Hire

Click on the Overview tab for more information


Addon Subtotal: $0
Clear

Shift Finance - Pay Your Way

Looking to Finance your Purchase? Learn More about your Finance Options >>

SKU: 132062DSLT

Pickup Options

Delivery Charges:

Enquire Now

Medium-Duty 450kg S.W.L.1.3m Width. We are Australia’s leading manufacturer and distributor of scaffolding and access equipment.

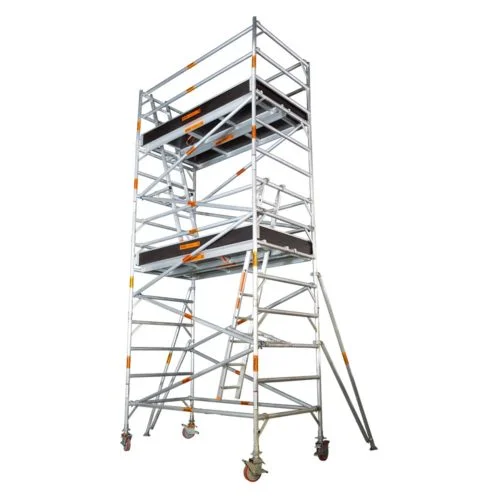

Synergy aluminium mobile wide scaffold contains lightweight components which allows easy assembly and transport. Complete with Work Cover NSW certification means this scaffold can be used in domestic and commercial fields. More suited for residential, commercial and industrial sites.

For bulk orders and pricing please contact us

Workcover certifies double width mobile scaffolds without support to a maximum height of 5m. Mobile scaffolds over 5m require outriggers by law which must be positioned to maintain a height to minimum base width ratio of 3:1 the height of towers with a base width less than 1.2m should not exceed twice least base dimensions.
A licensed scaffolder is required for the erection, alteration or dismantling of a tower or mobile scaffold where there is a risk that a person or object could fall more than 4 metres from the platform or the structure. (AS/NZS 4576:1995, 10.3.8 Tower-frame scaffolds)

Scaffold Expert Hire Add-On: Have someone come to your premises and show you how to erect your scaffold properly. Cheaper than Labour-Hire and you learn how to put the scaffold together for future jobs!
Please note: This is a guide only on how to build the scaffold and will still need a minimum of 2 people to put it together. The Expert is only there to show you the steps and give support, not to build the scaffold on their own.

INCLUSIONS

Quantity Description Individual Weight(kg) Total Weight(kg)
2 1.00m Guard Rails 4.65 9.30
6 2.00m Ladder Frame 9.10 54.60
4 8inch Wheels (Can be adjusted by 400mm) 5.55 22.20
10 2.00m Horizontal Braces 2.03 20.30
12 2.00m Diagonal Braces 5.20 62.40
2 2.00m Platforms 16.10 32.20
2 4.00m Straight Ladder 10.30 20.60
4 1.30m Kickboards 2.40 9.60
4 2.00m Kickboards 4.00 16.00
2 (3.00m – 5.00m) Stabilisers 14.30 28.60

TOTAL WEIGHT: 275.80kg

WF5-400 Aluminium Wide Frames, 1.3 x 2.0m

The 2.0M five rung wide frames are used in conjunction with the wide scaffolds.

WG1 Guard rail, 1000*1300mm

Synergy’s guard rail frame is made from durable and weather-resistant aluminium tubing with a tube wall thickness of 2mm.

It has an overall height of 1000mm, width of 1300mm (outside to outside) with the rung interval spacing at 400mm apart.

The top end of the frame has a closed-end cap.



S5 Stabilisers, *- 3000mm-5000mm

Our stabilizers have two arms which attach onto the scaffold using a swivel coupler to prevent it from rocking. The leg of the stabilizer allows the user to adjust the range depending on what is required. It can be used in any situation. It also includes a swivel foot with rubber sole for extra stability.

CWA8 8inch Adjustable Castor Wheels

The 8-inch mobile scaffold polyurethane wheel is 150mm and have an SWL of 225kgs. Fitted with a foot brake to prevent rolling and swivelling movement and a turning mechanism to provide an adjustment of 400mm, they are suitable for both internal and external use.

Aluminium Mobile Scaffold Ladders

Sizes: 1.7m, 3.0m, 4.0m 6.0m

Our ladders are designed to enable easy transport. They feature a brace to secure the ladder at any angle and hooks to rest on the scaffold ladder frame rungs.

platform NPHO Platform with Hatch, 2.0m(1883mm Long Deck)

Our platform suitable for the 2.0m long mobile scaffold is manufactured from marine grade plywood and is 1883mm long from centre to centre. It features an easy-lift hatch which allows for access between levels while ensuring the worker is safe.

brace NHB Horizontal Brace, 2.0m

Our horizontal brace suitable for the 2.0m long scaffold is precisely 1884mm long. The brace is manufactured from certified structural grade aluminium tubing. The ends of the brace are riveted.

brace NDB-400 Diagonal Brace, *m

Our horizontal brace suitable for the 2.0m long scaffold is precisely 2000mm long. The brace is manufactured from certified structural grade aluminium tubing. The ends of the brace are riveted.

Timber Kickboards

Synergy’s Toeboards are made of plywood material and are designed for an easy and secure fit.



Length: 2.0m

Width: 1.3m

Platform Height: 6.2m Extends to 6.6m

Total Scaffold Height: 7.2m Extends to 7.6m

Tube Material: Aluminium 6061-T6

Tube Diameter: 51.5mm

Tube Wall Thickness: 2mm

Tig Welding

Safe Work Load (SWL):  450kg

Wheel Size: 8 Inch (200mm)

Platform Material: Aluminium & Laminated Plywood

Work Cover Plank Registration Number: PFS 6-154120/11

1 Year Manufacturer Warranty

10 Years Welding Warranty

Please use the table below to see if pickup or delivery is available at your location for both sales and hire:

We Deliver Australia Wide! (Sales only)

CITY HIRE SALES
SYDNEY (Revesby) Pickup/Delivery Pickup/Delivery
SYDNEY (Chipping Norton) Pickup/Delivery Pickup/Delivery
BRISBANE Pickup/Delivery Pickup/Delivery
MELBOURNE Pickup/Delivery Pickup/Delivery
ADELAIDE Pickup/Delivery Pickup/Delivery
PERTH Pickup/Delivery Pickup/Delivery

SHIPPING

All our scaffolds are made up of individual components that are neatly packed and delivered on standard sized pallets.

The vast majority of orders are same day or next day delivery if delivered to metro areas in the following cities:

  • Sydney
  • Melbourne
  • Brisbane
  • Perth
  • Adelaide

Delivery to other cities in Australia or to rural or regional areas can take up to one week depending on the courier company.

We aim to provide the best price on freight hence why we use a vast majority or courier companies depending on factors such as price, speed and insurance policies.

Your order will be sent out with one of the following courier companies:

  • Samson Express
  • Mainfreight
  • Century couriers
  • Toll IPEC / Toll Express
  • Capital Transport
  • Northline
  • TNT
  • Synergy Scaffolding (Internal deliveries)

Due to high order demands and no control over external courier’s companies, we cannot always guarantee delivery within those timeframes.

PICKUP

If you decide to pick up your scaffold from one of our warehouses, we can either hand load the parts onto your vehicle (this is suitable for those who want to pick up in a van, ute or vehicle with roof racks) or we can forklift on the scaffold packed on a pallet.

  • Website prices are subject to change at any time without notice, Synergy Aluminium Towers Pty Ltd cannot guarantee the prices listed on our website as prices can change prior to being updated online.
  • Please check for availability in-store prior to arriving due to different locations holding different stock
  • Please refer to the inclusions listed in the detail section for each scaffold as image components may differ

Work cover Certificate

Assembly Manual

Warranty Certificate

Tower and Mobile Scaffolds Information Sheet





Wide Scaffold Assembly Manual







Wide Scaffold WorkCover Certificate



Your order will be delivered on a pallet with the following dimensions:

Pallet dimensions:

Width: 130CM
Length: 380CM
Height: 80CM

TOTAL WEIGHT: 210kg

Please view the images below to give you a rough idea of how your order gets packed and delivered.
