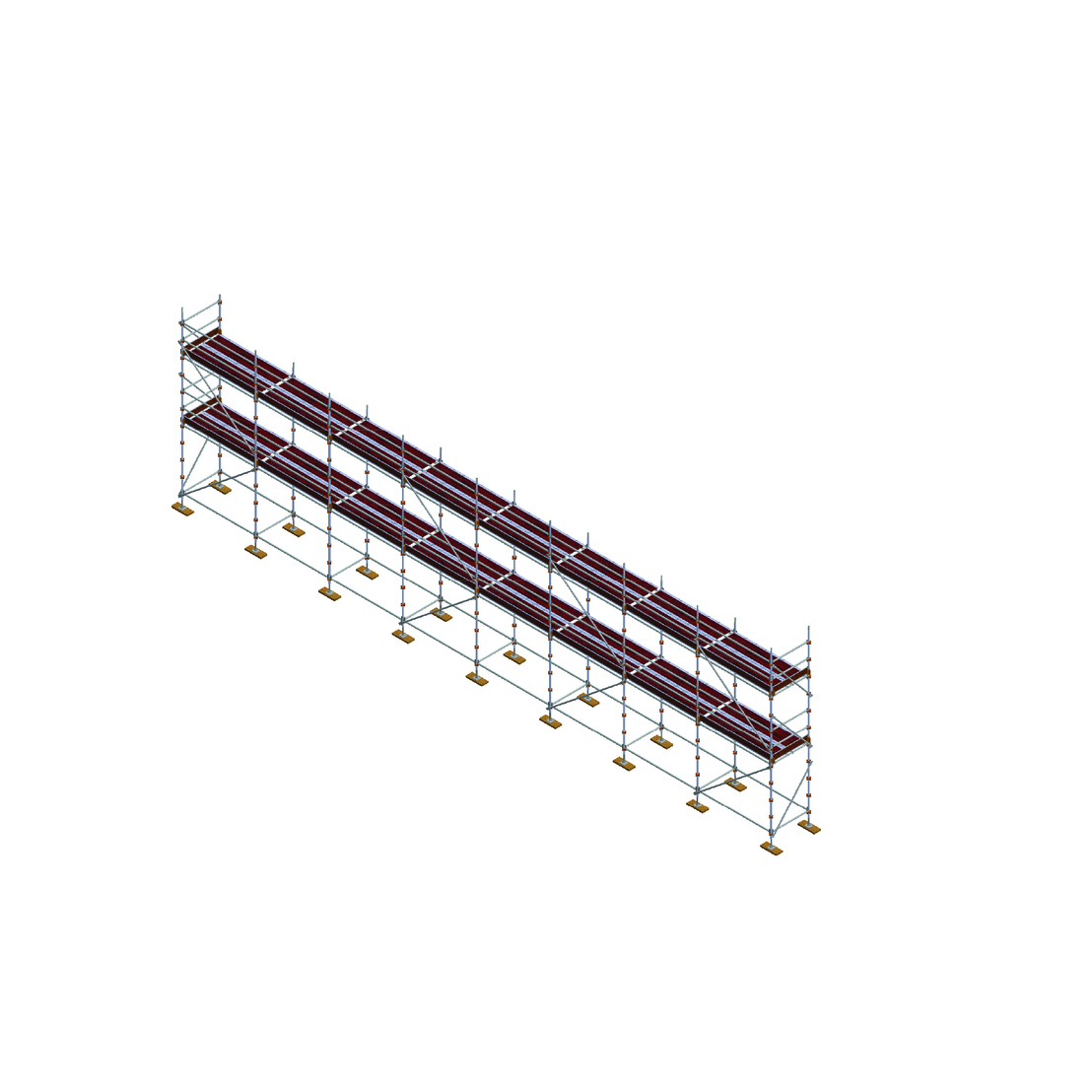

Aluminium Kwikally Modular Scaffold System 20m (Scaffold Length) x 4m (Height)

Aluminium Kwikally Modular Scaffold System 20m (Scaffold Length) x 4m (Height)
Width: 1.3m, 0.7m
Length: 20m
Height: 4.0m
0.00
(Inclusive GST)
Hire for
See Package Inclusions
NARROW SCAFFOLD
8x Diagonal Brace 3.2m
6x Diagonal Brace 1.6m
22x Toe Board Clips
35x Ledger 0.7 m
80x Ledger 2.5m
18x Timber Sole Boards
16x 2500*600mm Hatch
4x 680mm Toe Board
16x 2500mm Toe Board
11x Standard 0.5m
7x Standard 1.5m
11x Standard 2.0m
18x Standard 3.0m
18x Solid Base Jack
.
WIDE SCAFFOLD
8x Diagonal Brace 3.2m
6x Diagonal Brace 2.0m
22x Toe Board Clips
35x Ledger 1.3 m
80x Ledger 2.5m
18x Timber Sole Boards
32x 2500*600mm Hatch
4x 1280mm Toe Board
16x 2500mm Toe Board
11x Standard 0.5m
7x Standard 1.5m
11x Standard 2.0m
18x Standard 3.0m
18x Solid Base Jack
Select Add-ons
Add Gears

Please select a variation

KA-L20xW1.3xH4.0 CODE DESCRIPTION QTY PER LEVEL LEVELS TOTAL Price per Item Total Price Total Kit Price
TIES NO HOPUP 1500TUBE 1.5m Tube 5 2 10 $17.2 $171.6 $324.5
DC Doubles (90'z) 10 2 20 $2.4 $48.4
WBR Wall Bracket 5 2 10 $10.5 $104.5
0.3M HOPUP KA-0.3BR 300 mm Hopup 9 2 18 $30.0 $540.2 $1923.5
KA-2.5SP 2.5m Single Plank 8 2 16 $86.5 $1383.3
0.3M HOPUP TIES 1800TUBE 1.8m Tube 5 2 10 $10.3 $103 $255.9
DC Doubles (90'z) 10 2 20 $2.4 $48.4
WBR Wall Bracket 5 2 10 $10.5 $104.5
0.5M HOPUP KA-0.5BR 506 mm Hopup 9 2 18 $42.2 $760.1 $3183.2
KA-AL-2.5X0.3PC 2500*300 mm Platform 8 2 16 $151.4 $2423.1
0.5M HOPUP TIES 2100TUBE 2.1m Tube 5 2 10 $12.0 $120.1 $273
DC Doubles (90'z) 10 2 20 $2.4 $48.4
WBR Wall Bracket 5 2 10 $10.5 $104.5
0.7M HOPUP KA-0.7BR 680 mm Hopup 9 2 18 $45.2 $813.9 $3931.7
KA-AL-2.5x0.6PH 2500*600 mm Platform 8 2 16 $194.9 $3117.8
0.7M HOPUP TIES 2400TUBE 2.4m Tube 5 2 10 $13.7 $137.3 $290.2
DC Doubles (90'z) 10 2 20 $2.4 $48.4
WBR Wall Bracket 5 2 10 $10.5 $104.5
LADDER ALSCF36 3.6m Ladder 1 2 2 $83.0 $165.9 $175.6
DC Doubles (90'z) 2 2 4 $2.4 $9.7
INTERNAL HANDRAIL KA-2.5L Ledger 2.5m 8 2 16 $36.9 $589.8 $589.8
INTERNAL MIDRAIL KA-2.5L Ledger 2.5m 8 2 16 $36.9 $589.8 $589.8
OUTRIGGERS S3 Stabilizer 3.0m 5 1 5 $148.9 $744.3 $744.3
INTERNAL TOEBOARD KA-2.5TB 2500 mm Toe Board 8 2 16 $31.0 $496.7 $496.7
KA-L20xW0.7xH4.0 CODE DESCRIPTION QTY PER LEVEL LEVELS TOTAL Price per Item Total Price Total Kit Price
TIES NO HOPUP 900TUBE 0.9m Tube 5 2 10 $10.3 $103 $408.8
DC Doubles (90'z) 10 2 20 $4.8 $96.8
WBR Wall Bracket 5 2 10 $20.9 $209
0.3M HOPUP KA-0.3BR 300 mm Hopup 9 2 18 $60.0 $1080.4 $3847.1
KA-2.5SP 2.5m Single Plank 8 2 16 $172.9 $2766.7
0.3M HOPUP TIES 1200TUBE 1.2m Tube 5 2 10 $13.7 $137.3 $443.1
DC Doubles (90'z) 10 2 20 $4.8 $96.8
WBR Wall Bracket 5 2 10 $20.9 $209
0.5M HOPUP KA-0.5BR 506 mm Hopup 9 2 18 $84.5 $1520.3 $6366.5
KA-AL-2.5X0.3PC 2500*300 mm Platform 8 2 16 $302.9 $4846.2
0.5M HOPUP TIES 1500TUBE 1.5m Tube 5 2 10 $17.2 $171.6 $477.4
DC Doubles (90'z) 10 2 20 $4.8 $96.8
WBR Wall Bracket 5 2 10 $20.9 $209
0.7M HOPUP KA-0.7BR 680 mm Hopup 9 2 18 $90.4 $1627.8 $7863.5
KA-AL-2.5x0.6PH 2500*600 mm Platform 8 2 16 $389.7 $6235.7
0.7M HOPUP TIES 1800TUBE 1.8m Tube 5 2 10 $20.6 $205.9 $511.7
DC Doubles (90'z) 10 2 20 $4.8 $96.8
WBR Wall Bracket 5 2 10 $20.9 $209
LADDER ALSCF36 3.6m Ladder 1 2 2 $165.9 $331.8 $351.2
DC Doubles (90'z) 2 2 4 $4.9 $19.4
INTERNAL HANDRAIL KA-2.5L Ledger 2.5m 8 2 16 $73.7 $1179.6 $1179.6
INTERNAL MIDRAIL KA-2.5L Ledger 2.5m 8 2 16 $73.7 $1179.6 $1179.6
OUTRIGGERS S3 Stabilizer 3.0m 5 1 5 $148.9 $744.3 $744.3
INTERNAL TOEBOARD KA-2.5TB 2500 mm Toe Board 8 2 16 $62.1 $993.4 $993.4
Gearlist Subtotal: $0
Addon Subtotal: $0
Clear

Note: An Admin Fee of $0 applies when hiring this product. An additional fee of $0 also applies when hiring for less than 0 weeks.

Pickup Options

Delivery Charges:

Enquire Now

    Enquire Product Form






    Synergy’s Aluminium Kwikstage system is the most durable, lightweight scaffolding system on the market. Ideal for Builders, Painters, Renderers & Tradesmen that need to access any height with ease and complete safety.

    For bulk orders and pricing please contact us

    UPGRADE TO ALUMINIUM PLATFORMS FOR ONLY $50 per platform
    Our aluminium platforms are relatively light in weight but still holds high level of strength, reliability & durability. They are quite easy to manoeuvre around a jobsite or for personal use. Our aluminium platforms will provide you with the most solid & stable working environment

    NARROW SCAFFOLD

    Part No. Description Qty Weight per Item(KG) Total Weight(KG)
    KA-3.2DB Diagonal Brace 3.2m 8 5.3 42.4
    KA-1.6DB Diagonal Brace 1.6m 6 3.8 22.8
    KA-TBC Toe Board Clips 22 0.3 7.0
    KA-0.7L Ledger 0.7 m 35 1.9 66.5
    KA-2.5L Ledger 2.5m 80 3.8 302.4
    THS-500x38mm Timber Sole Boards 18 5.1 91.8
    KA-AL-2.5×0.6PH 2500*600mm Hatch 16 18.4 293.6
    KA-0.7TB 680mm Toe Board 4 1.0 3.9
    KA-2.5TB 2500mm Toe Board 16 1.1 16.8
    KA-0.5S Standard 0.5m 11 4.8 52.8
    KA-1.5S Standard 1.5m 7 2.5 17.7
    KA-2.0S Standard 2.0m 11 3.3 36.2
    KA-3.0S Standard 3.0m 18 4.8 86.4
    SBJ Solid Base Jack 18 7.0 126.0
    Total Kit Weight (KG) 1124.0



    WIDE SCAFFOLD

    Part No. Description Qty Weight per Item(KG) Total Weight(KG)
    KA-3.2DB Diagonal Brace 3.2m 8 5.3 42.4
    KA-2.0DB Diagonal Brace 2.0m 6 3.8 22.8
    KA-TBC Toe Board Clips 22 0.3 7.0
    KA-1.3L Ledger 1.3 m 35 2.6 89.3
    KA-2.5L Ledger 2.5m 80 3.8 302.4
    THS-500x38mm Timber Sole Boards 18 5.1 91.8
    KA-AL-2.5×0.6PH 2500*600mm Hatch 32 18.4 587.2
    KA-1.3TB 1280mm Toe Board 4 2.5 9.8
    KA-2.5TB 2500mm Toe Board 16 4.8 76.8
    KA-0.5S Standard 0.5m 11 1.1 11.6
    KA-1.5S Standard 1.5m 7 2.5 17.7
    KA-2.0S Standard 2.0m 11 3.3 36.2
    KA-3.0S Standard 3.0m 18 4.8 86.4
    SBJ Solid Base Jack 18 7.0 126.0
    Total Kit Weight (KG) 1507.4

    Medium Duty
    Tube Material: Aluminium 6061-T6
    Tig Welding
    Tube Diameter: 48.4mm
    Tube Wall Thickness: 2.6mm

    1 Year Manufacturer Warranty

    10 Years Welding Warranty





    Kwikally Narrow Bays





    Kwikally Wide Bays





    Kwikally Scaffold WorkCover Certificate
