Width: 1.3m
Length: 2.0m
Height: 4.2m
$5249
(Inclusive GST)
Hire for $320 /week
See Package Inclusions
4 X FRP 4 rung wide frame 2093mm
2 X FRP guard rail wide frame 814.5mm
10 X FRP horizontal brace 1829mm
8 X FRP diagonal brace 2079.8mm
2 X FRP platform with hatch 1829mm
4 X 1058mm Toe Board
4 X 1782mm Toe Board
8 X Toe Board clip
4 X 8 inch Kwikally Castor Wheel
2 X FRP ladder 2.8m
2 X FRP 2.8m ladder supporter
2 X FRP platform no hatch 1829mm
2 X Stabilisers
Select Add-ons

Addon Subtotal: $0
Clear

Shift Finance - Pay Your Way

Looking to Finance your Purchase? Learn More about your Finance Options >>

SKU: SAT1247DSLT

Pickup Options

Delivery Charges:

Price Match
Enquire Now

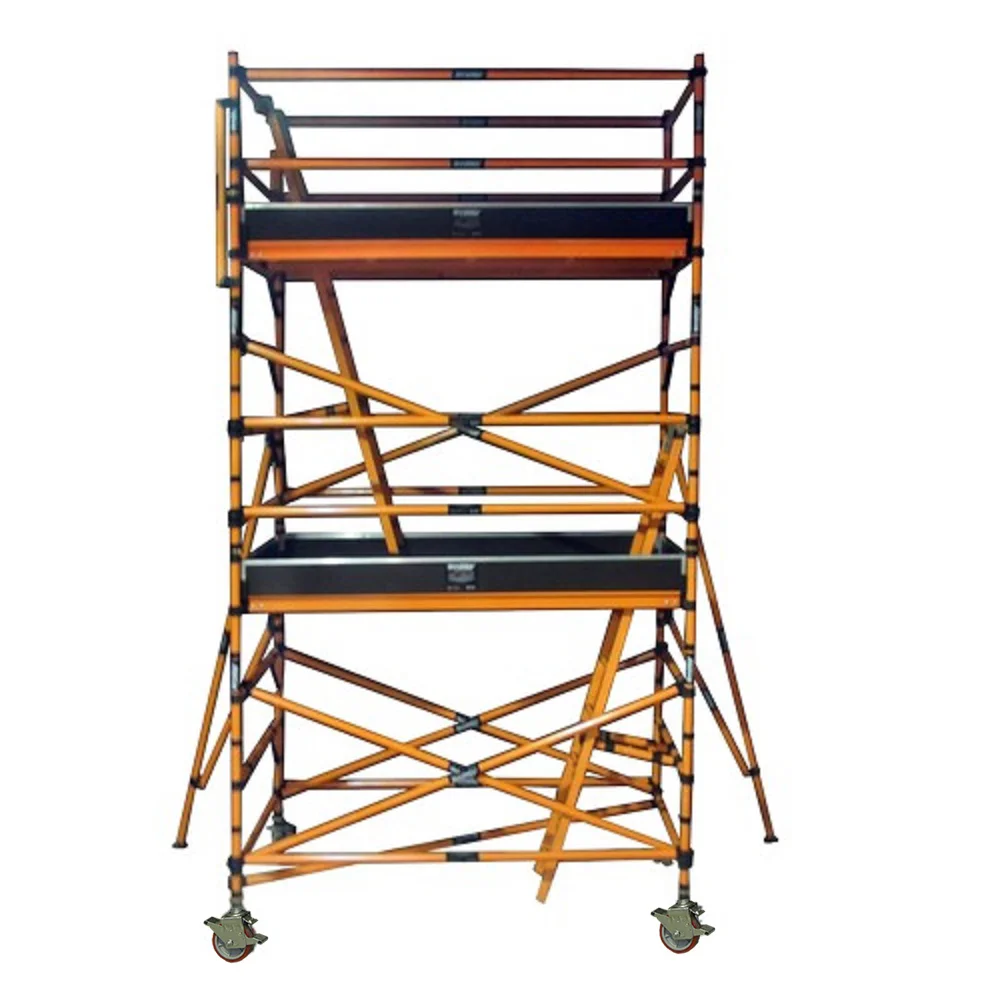

Synergy fibreglass mobile scaffold contains lightweight components which allows easy assembly and transport. Complete with Work Cover NSW certification means this scaffold can be used in domestic and commercial fields.

The double width fibreglass towers can be used near power lines, shutdowns, railway stations and areas near live wires.

For bulk orders and pricing please contact us

*Price inclusive of all components as per the image

Workcover certifies double width mobile scaffolds without support to a maximum height of 5m. Mobile scaffolds over 5m require outriggers by law which must be positioned to maintain a height to minimum base width ratio of 3:1 the height of towers with a base width less than 1.2m should not exceed twice least base dimensions.
A licensed scaffolder is required for the erection, alteration or dismantling of a tower or mobile scaffold where there is a risk that a person or object could fall more than 4 metres from the platform or the structure. (AS/NZS 4576:1995, 10.3.8 Tower-frame scaffolds)

INCLUSIONS

Code Item Qty
FRP-WF4 FRP 4 rung wide frame 2093mm 4
FRP-WG1 FRP guard rail wide frame 814.5mm 2
FRP-HB1.8 FRP horizontal brace 1829mm 10
FRP-DB1.8 FRP diagonal brace 2079.8mm 8
FRP-PH1.8 FRP platform with hatch 1829mm 2
FRP-TB1.0 1058mm Toe Board 4
FRP-TB1.8 1782mm Toe Board 4
FRP-TB Toe Board clip 8
KA-CW8 8 inch KWIKAlly Castor Wheel 4
FRP-L2.8 FRP ladder 2.8m 2
FRP-LS2.8 FRP 2.8m ladder supporter 2
FRP-PC1.8 FRP platform no hatch 1829mm 2

TOTAL WEIGHT: 276.86kg

Length: 2.0m

Width: 1.3m

Safe Work Load (SWL):  450kg

Wheel Size: 8 Inch (200mm)

Platform Material: FIbreglass & Laminated Plywood

Tube Diameter: 50mm

Tube Wall Thickness: 4mm

Work Cover Plank Registration Number: PFS 6-173609/13

1 Year Manufactures Warranty

10 Years Welding Warranty

Your order will be delivered on a pallet with the following dimensions:

Pallet dimensions:

Width: 150CM
Length: 270CM
Height: 70CM

TOTAL WEIGHT: 276.86kg

Please view the images below to give you a rough idea of how your order gets packed and delivered.

Packed Tower Example 1

Packed Tower Example 2
