Width: 0.74m
Length: 2.0m
Height: 3.0m
$1699
(Inclusive GST)
Hire for $200 /week
WATCH VIDEO HOW TO BUILD
See Package Inclusions
2x Four rung ladder frame
2x Three rung ladder frame
2x Guard rail, 1000*680mm
4x 2000mm Diagonal Brace
6x 2000mm Horizontal Brace
1x 2000mm Platform
4x Castor Wheel 6"
2x Stabiliser 2300 x 1500
2x Toe Board 700mm
2x Toe Board 2000mm
1x 4000 mm Aluminium Ladder
Select Add-ons

Scaffold Upgrades

Scaffold Expert Hire

Click on the Overview tab for more information


Addon Subtotal: $0
Clear

SKU: 072030SLT

Pickup Options

Delivery Charges:

Price Match
Enquire about product

Light-Duty 225kg S.W.L. 0.7m Width. We are Australia’s leading manufacturer and distributor of scaffolding and access equipment.

Synergy aluminium mobile foldable scaffold contains lightweight components which allows easy assembly and transport. Complete with Work Cover NSW certification means this scaffold can be used in domestic and commercial fields. More suited for shops, warehouse picking and small jobs around the home.

For bulk orders and pricing please contact us

Workcover certifies double width mobile scaffolds without support to a maximum height of 5m. Mobile scaffolds over 5m require outriggers by law which must be positioned to maintain a height to minimum base width ratio of 3:1 the height of towers with a base width less than 1.2m should not exceed twice least base dimensions.
A licensed scaffolder is required for the erection, alteration or dismantling of a tower or mobile scaffold where there is a risk that a person or object could fall more than 4 metres from the platform or the structure. (AS/NZS 4576:1995, 10.3.8 Tower-frame scaffolds)

Light-Duty 225kg S.W.L. 0.74m Width. We are Australia’s leading manufacturer and distributor of scaffolding and access equipment.

Scaffold Expert Hire Add-On: Have someone come to your premises and show you how to erect your scaffold properly. Cheaper than Labour-Hire and you learn how to put the scaffold together for future jobs!
Please note: This is a guide only on how to build the scaffold and will still need a minimum of 2 people to put it together. The Expert is only there to show you the steps and give support, not to build the scaffold on their own.

INCLUSIONS

Quantity Description Individual Weight(kg) Total Weight(kg)
2 Four Rung Ladder Frame
2 Three Rung Ladder Frame 3.87 7.74
1 4m Ladder 10.30 10.30
4 6inch Castor Wheels 3.40 13.60
2 1m Guard Rails 3.30 6.60
1 2m Platform 16.10 16.10
6 Horizontal Brace 1.80 14.4
4 Diagonal Brace 2.75 11
2 2m Kickboard 4.00 8.00
2 0.74m Kickboard 1.50 6.00
2 2.3m – 3m Stabilisers 7.10 14.20

TOTAL WEIGHT: 107.94kg

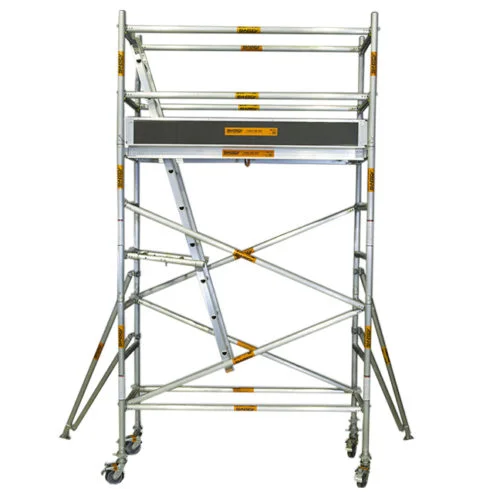

Aluminium Mobile Narrow Scaffold 3.0m - 3.4m (Platform Height) NF4-400 Aluminium Narrow Frames, 0.74 x 1.6m

Synergy’s 4 rung ladder frame is manufactured from durable and weather-resistant aluminium tubing with a tube wall thickness of 2mm.

Frame NF3-400 Aluminium Narrow Frames, 0.74 x 1.2m

Synergy’s 3 rung ladder frame is manufactured from durable and weather-resistant aluminium tubing with a tube wall thickness of 2mm.
It has an overall height of 1195mm, width of 740mm (outside to outside) with the rung interval spacing at 400mm apart.
The top end of the frame has a spigot which allows for frames to be inserted into the spigot ensuring a quick connect.

frame FG1 Guard rail, 1000*740mm

Synergy’s guard rail frame is made from durable and weather-resistant aluminium tubing with a tube wall thickness of 2mm.

It has an overall height of 1000mm, width of 740mm (outside to outside) with the rung interval spacing at 400mm apart.

The top end of the frame has a closed-end cap.

Aluminium Mobile Narrow Scaffold 3.0m - 3.4m (Platform Height) CWA6-45 6inch Adjustable Castor Wheels

The 6-inch mobile scaffold polyurethane wheel is 150mm and have an SWL of 225kgs. Fitted with a foot brake to prevent rolling and swivelling movement and a turning mechanism to provide an adjustment of 400mm, they are suitable for both internal and external use.

Aluminium Mobile Narrow Scaffold 3.0m - 3.4m (Platform Height) Aluminium Mobile Scaffold Ladders

Sizes: 4.0m

Our ladders are designed to enable easy transport. They feature a brace to secure the ladder at any angle and hooks to rest on the scaffold ladder frame rungs.

platform NPHO Platform with Hatch, 2.0m(1883mm Long Deck)

Our platform suitable for the 2.0m long mobile scaffold is manufactured from marine grade plywood and is 1883mm long from centre to centre. It features an easy-lift hatch which allows for access between levels while ensuring the worker is safe.

brace NHB Horizontal Brace, 2.0m

Our horizontal brace suitable for the 2.0m long scaffold is precisely 1884mm long. The brace is manufactured from certified structural grade aluminium tubing. The ends of the brace are riveted.

brace NDB-400 Diagonal Brace, *m

Our horizontal brace suitable for the 2.0m long scaffold is precisely 2000mm long. The brace is manufactured from certified structural grade aluminium tubing. The ends of the brace are riveted.

Aluminium Mobile Narrow Scaffold 3.0m - 3.4m (Platform Height) Timber Kickboards

Synergy’s Toeboards are made of plywood material and are designed for an easy and secure fit.

Aluminium Mobile Narrow Scaffold 3.0m - 3.4m (Platform Height) S3 Stabilisers, *-2300mm-3000mm

Our stabilizers have two arms which attach onto the scaffold using a swivel coupler to prevent it from rocking. The leg of the stabilizer allows the user to adjust the range depending on what is required. It can be used in any situation. It also includes a swivel foot with rubber sole for extra stability.



  • Length: 2.0m
  • Width: 0.74m
  • Platform Height: 3.0m
  • Tube Material: Aluminium 6061-T6
  • Tube Diameter: 51.5mm
  • Tube Wall Thickness: 2mm
  • Tig Welding
  • Safe Work Load (SWL):  225kg
  • Wheel Size: 5 Inch (150mm)
  • Platform Material: Aluminium & Laminated Plywood
  • Work Cover Plank Registration Number: PFS 6-154121/11
  • 1 Year Manufactures Warranty
    10 Years Welding Warranty





    Narrow Scaffold Assembly Manual



    Aluminium Mobile Narrow Scaffold 3.0m - 3.4m (Platform Height)



    Narrow Scaffold Work Cover Certificate

    Aluminium Mobile Narrow Scaffold 3.0m - 3.4m (Platform Height)




    Your order will be delivered on a pallet with the following dimensions:

    Pallet dimensions:

    Width: 120CM
    Length: 230CM
    Height: 70CM
    + 4M Ladder

    TOTAL WEIGHT: 111.70kg (Not Including Pallet Weight)

    *Disclaimer* The total weight stated will vary based on add-ons. Images used below are generic and used to give you a rough idea of how your order will look packed. The images don’t represent the product you are purchasing.
    Aluminium Mobile Narrow Scaffold 3.0m - 3.4m (Platform Height)
    Aluminium Mobile Narrow Scaffold 3.0m - 3.4m (Platform Height)
